Capricorn 2 Meters TL Translucent 1.75mm Bowden Tubing
Capricorn 2 Meters TL Translucent 1.75mm Bowden Tubing
Capricorn 2 Meters TL Translucent 1.75mm Bowden Tubing

Capricorn 2 Meters TL Translucent 1.75mm Bowden Tubing

Regular price
Sold out
Sale price
$19.99 - $25.99
Shipping calculated at checkout.

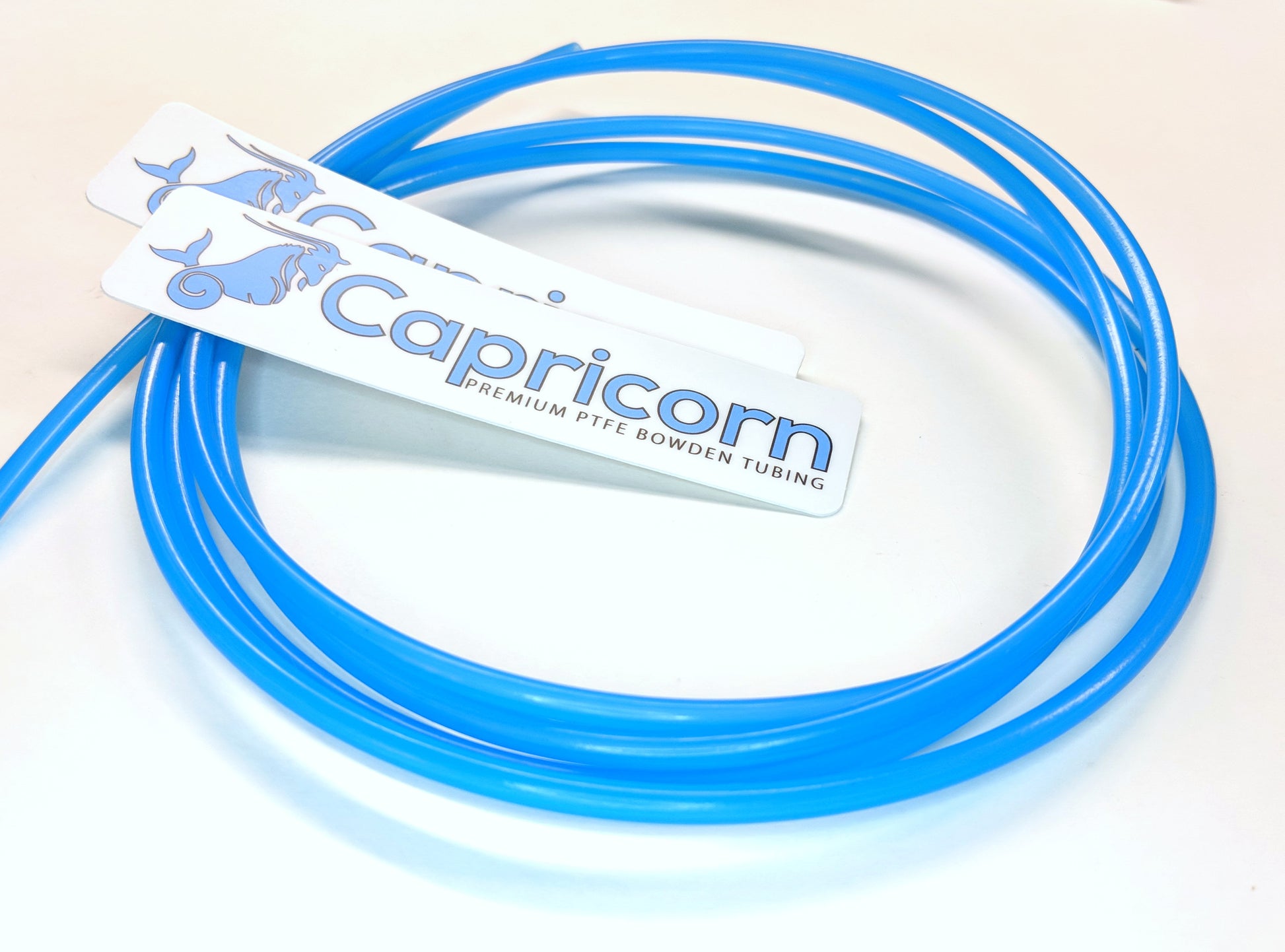

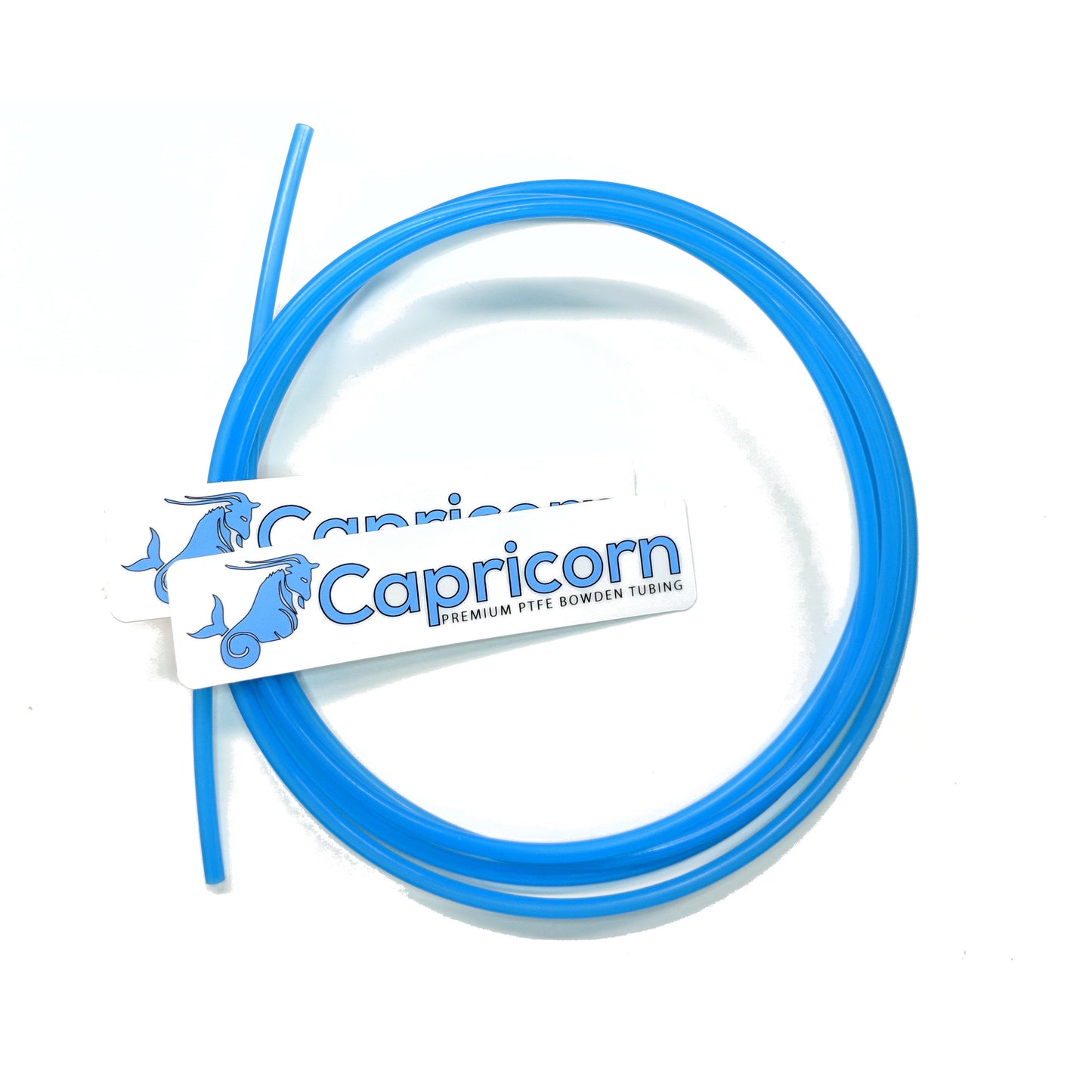

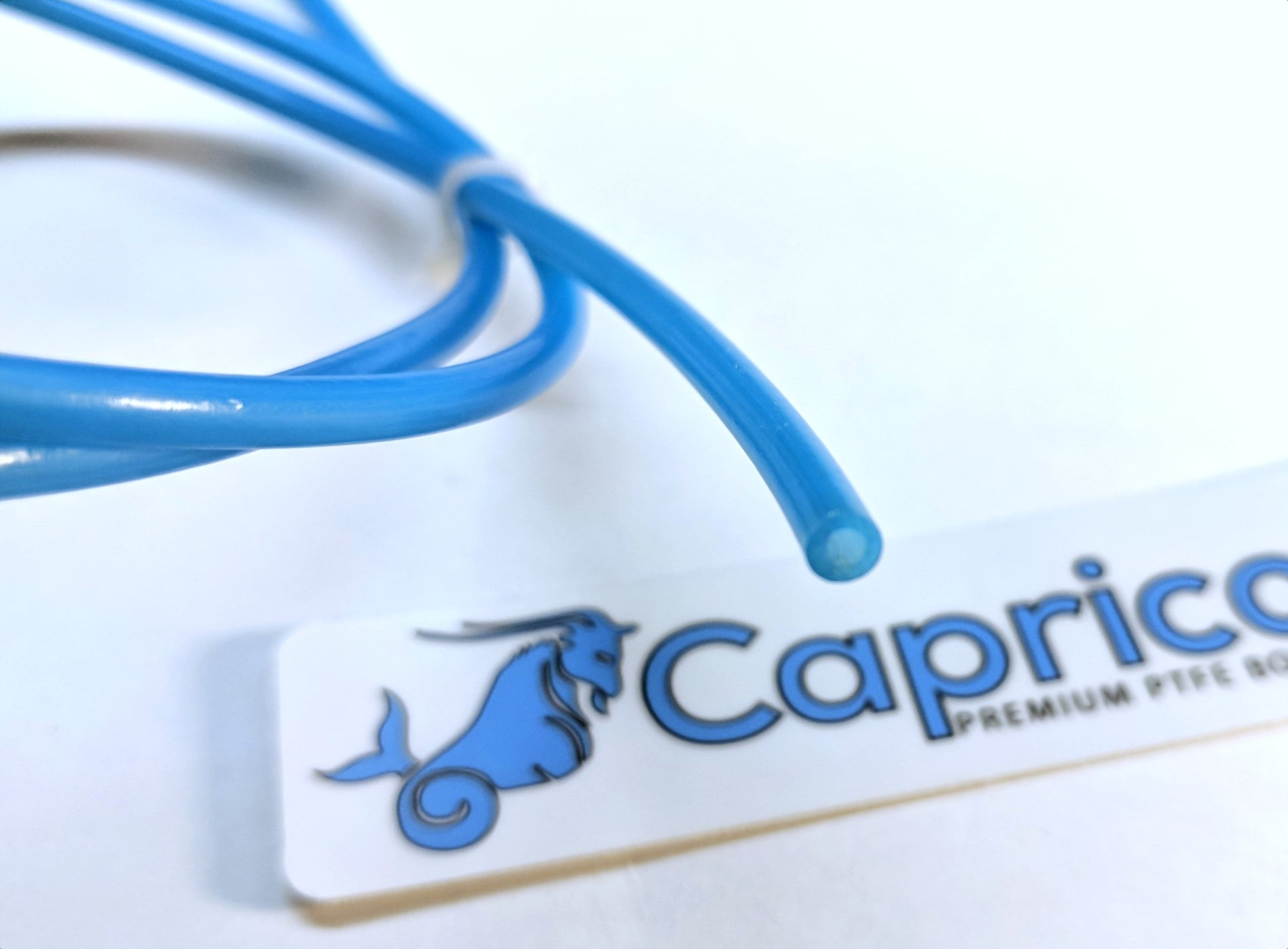

Two Meters of Capricorn's excellent quality translucent blue tubing. 2mm inner, 4mm outer diameter for 1.75mm filaments.
This blue translucent tubing is produced from the finest pure virgin transparent PTFE. Guarantee to always be the right diameter and perfectly round.
Comes with two Capricorn stickers to decorate your printer.

Data Sheet

Our Premium TL Series Light Blue Tubing
Additives Blue Color
Best For Chunky Filaments YES
Best For Flexible Filaments NO
Can See Through YES
Pulling Friction 0.8
Color Blue, Translucent
Density (kg/m3) 2100 +/-100
Hardness 55
Inner Diameter (mm) 2.05 +/- 0.05
Linear Thermal Expansion at 250 °C 3.4-3.6%
Material Highest Quality Pure Virgin PTFE
Melting Point (°C) around 300
Outer Diameter 3.95 +/- 0.05
Roundness (ϵ) < 0.1
Stiffness§ Medium
Thermal Conductivity (W/m-k) 0.25
Wear Rate (gm/s) 0.01
Young's Modulus (GPa)¥ 0.5
Pulling Friction is calculated as the average force required to pull 1.2 meters of 1.75mm PLA filament through 1 meter of tubing at a constant speed, relative to 1 meter of cheap white reference tubing. Note that although we observed the friction of the TL series to be about the same or even slightly lower than our XS series, it also has a larger internal diameter.
§Other Bowden tubes may vary significantly in stiffness, depending on the material from which they're made. Our tubing generally tends to be more flexible than most, with the TL being more flexible than XS.
¥Young's Modulus (YM) is the measure of elasticity of the material. Our XS Series additives give the PTFE a slightly greater YM than the TL Series.
Temperatures were approximated by heating samples of all tubing simultaneously, observing how quickly each one began to deform. Printer failures may happen at significantly lower temperatures.
Printing high temperature materials may create dangerous off-gassing. Please refer to the Safety Page.
